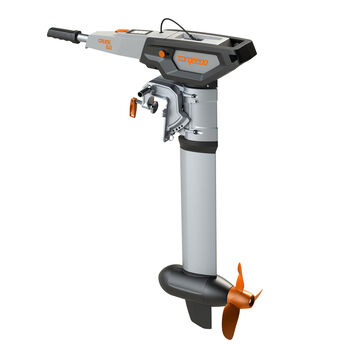

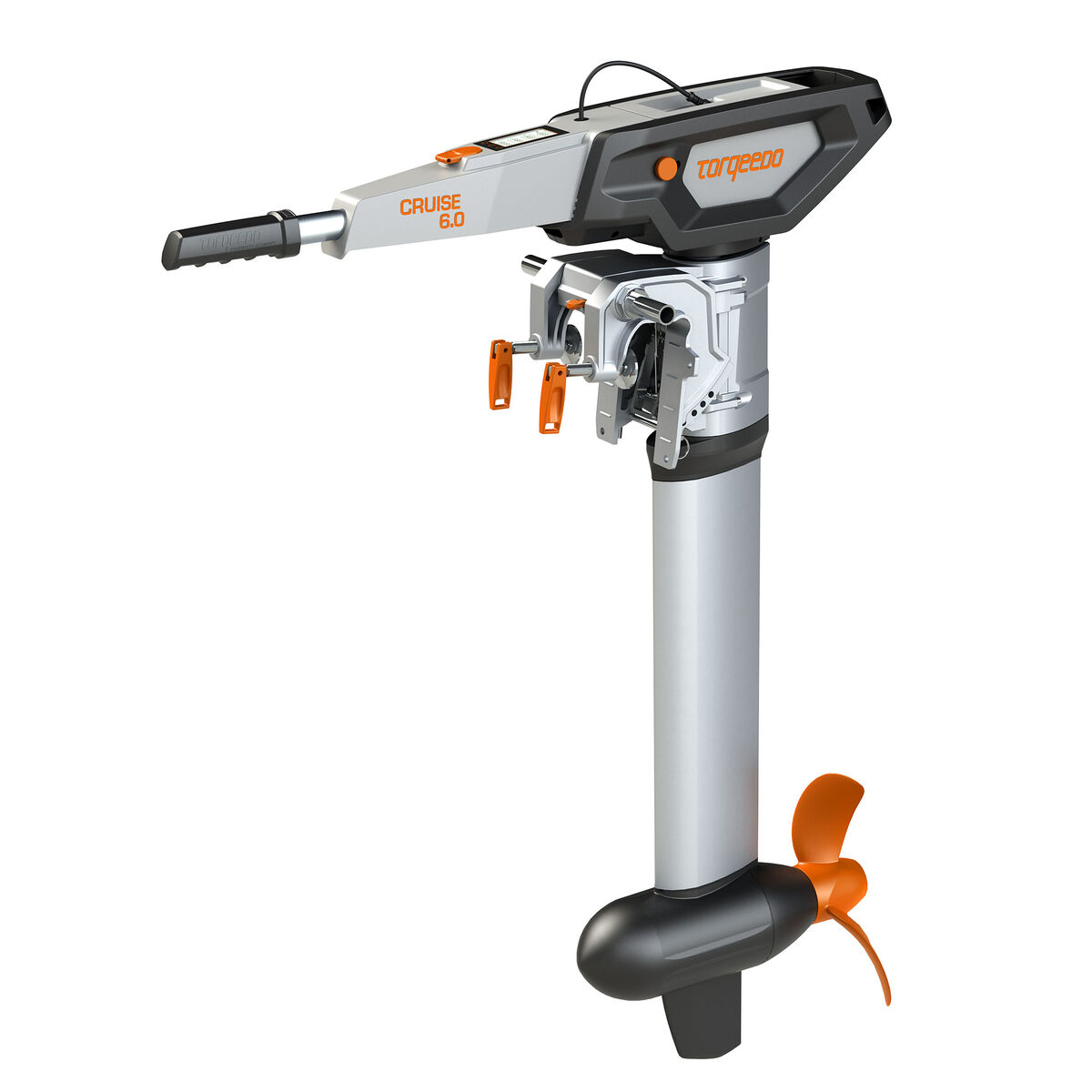

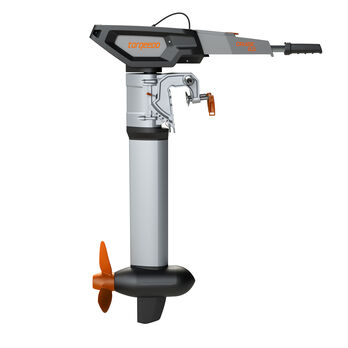

Cruise 6.0 TL
Electric outboard for motorboats and sailboats up to 6 tons





Cruise 6.0 TL

Electric outboard for motorboats and sailboats up to 6 tons

Cruise 6 Tiller Package


N/A

Motor
N/A
Immediate shipping
Length of Shaft
Short
Long
Battery
N/A
Immediate shipping
Power 48-5000
No Battery
Charger
N/A
Immediate shipping
Charger for Power 48-5000
No Charger
Gateway
N/A
Immediate shipping
TorqLink gateway set
No Gateway
 Find dealer



Product description


  • Maximum efficiency outboard with tiller control
  • Improved robustness and improved corrosion protection
  • 6,000 W input power, in terms of propulsion is comparable with an 9.9-hp petrol outboard
  • Integrated on-board computer with GPS-based range calculation


Ordering information


  • Item number: 1267-00  | EAN: 4260113696781
  • Equipment included: Outboard with tiller steering, integrated on-board computer with GPS-based range calculation, cable set (S: 4,0m L: 4,12m, 35 mm²) including main switch and propeller B 12.5 x 17 HSP, emergency magnetic stop key
  • Take a look at our Cruise Info Tool for helpful information
  • Warranty: 2 years for non-commercial use
  • * Only while stocks last. Offer is valid across all Cruise models. Price discounts vary depending on the model combination.
  • California residents please click here for Prop 65 warning






  • Cruise 6.0 T

    Torqeedo Cruise 40 T Torqeedo Cruis



    Cruise motors are the electric outboard motor of choice for motorboats, dinghies and commercial users.

    All Cruise systems have a built-in GPS with on-board computer and display with speed and input power, state of charge and remaining range, with a compact, low-drag, and lightweight pylon with advanced helical gear design.

    Cruise 6.0 T is a tiller-equipped 48-Volt, 9.9 horsepower-equivalent outboard perfect for boats up to 6 tons.

    The Cruise 6.0 is also available as a remote-steered or fixed pod model.



    Cruise 6.0 T - Benefits:

    • High-efficiency outboard with 6,000 W input power, equivalent to a 9.9 HP petrol outboard
    • Pair with Power 48-5000 for best performance and accurate range/runtime functionality
    • T model is equipped with tiller control with integrated display screen and magnetic kill switch (included in scope of delivery)
    • Rugged pylon with integral fin – extra protection when running aground
    • Highest-grade seawater-proof aluminum for long service life, even in the harshest conditions
    • Comprehensive galvanic corrosion protection through careful matching of all materials and meticulous isolation of materials with different electrochemical properties - ships with anode set for fresh and saltwater
    • Also compatible with third-party batteries (48-Volt) but careful matching to motor power requirements is needed and additional cable set part number 1990-00 is required


    Torqeedo Tavel 1003

    The on-board computer display provides information on the most important performance data

    Available with short or long shaft – as you need

    Impact-resistant aluminium integral fin

    Rugged: aluminium housing with shaft sealant rings on the inside

    Optimised propeller design: For greater thrust or more speed










  • Range

    Cruise 6.0 with 1 x Power 48-5000

    As tested on Linder 400 Sportsman



    Speed in km/h* Running time in hh:mm
    Slow 8.5 05:00
    Half throttle 13.0 01:40
    Full throttle 27.0 00:50

    * Dependent on factors such as type of boat, load, propeller and ambient conditions. Figures for speed and range are indicative only and are not a guarantee of performance.





  • Specifications

    Technical Data Cruise



    Cruise 6.0 T
    Input power in watts 6000
    Propulsive power in watts 3504
    Comparable petrol outboards (propulsive power) 9.9 HP
    Comparable petrol outboards (thrust) 15 HP
    Maximum overall efficiency in % 58
    Static thrust in lbs* 230
    Integrated battery -
    Nominal voltage 48
    Final charging voltage -
    Total weight in kg 21.3 (S) / 21.8 (L)
    Motor weight without battery in kg -
    Weight of integrated battery -
    Shaft length in cm 62.5 (S) / 75.5 (L)
    Standard propeller
    v = speed in km/h at p = power in watts
    Propeller B 12,5 x 17 HSP
    Alternative propeller options Propeller B 12 x 13 THR
    Propeller Guide
    Maximum propeller speed in rpm 1130
    Control Tiller
    Steering 360° lockable
    Tilting device Manual with grounding protection
    Tilt angle 61,3°
    Trim device Manual, 4-step
    Integrated on-board computer Yes
    Stepless forward/reverse drive Yes
    * Torqeedo static thrust measurement is based on internationally accepted ISO standards. Static thrust figures for conventional trolling motors are typically measured differently, which results in higher values. To compare Torqeedo static thrust data with conventional trolling motors, add approximately 50% to the Torqeedo static thrust values.





    Technical Drawing









  • Product brochure

    Infomaterial

    Your information material – Everything at a glance

    You will find all important information about the Cruise in our digital brochure. Download the PDF quickly and easily or read it conveniently online while protecting the environment.





  • Tips

    Cruise 6.0 T FAQ

    • Which Cruise for which boat?

      All Cruise models are suitable for inflatables and other small boats.

      For dinghies and sailboats up to 3 tons, we recommend the Cruise 3.0. The Cruise 6.0 easily propels up to 6 tons.

    • Is the on-board computer compatible with my lead batteries?

      Yes, but with limitations.

      If the Cruise is operated with lead batteries the charge status indicator (and with it the remaining range indicator) is based on estimates derived from battery information entered during initial motor setup.

    • What are the advantages of the Power 48-5000 lithium battery for the Cruise?

      As a lithium battery, the Power 48-5000 provides far greater performance with lower weight than conventional lead batteries. In other words, it does not weigh down your boat unnecessarily – and you benefit in terms of range and power.

      Additionally, the integrated battery electronics of the Power 48-5000 are designed to communicate with the on-board computer, meaning that the values provided by the battery such as remaining range and capacity are always exact.

    • What does the on-board computer do?

      The on-board computer, which is integrated in the remote throttle with the Cruise R and in the tiller with the Cruise T, analyses information from the motor and combines it with GPS data.

      Motor consumption and GPS speed are always exact.

      When the Cruise is operated with the Power 48-5000, the information on the battery and on range with remaining capacity is also exact because both products communicate with each other. That is very convenient.

    • What is the warranty on the Cruise?

      The Cruise models have 2-year warranty from the date of purchase for non-commercial use.
